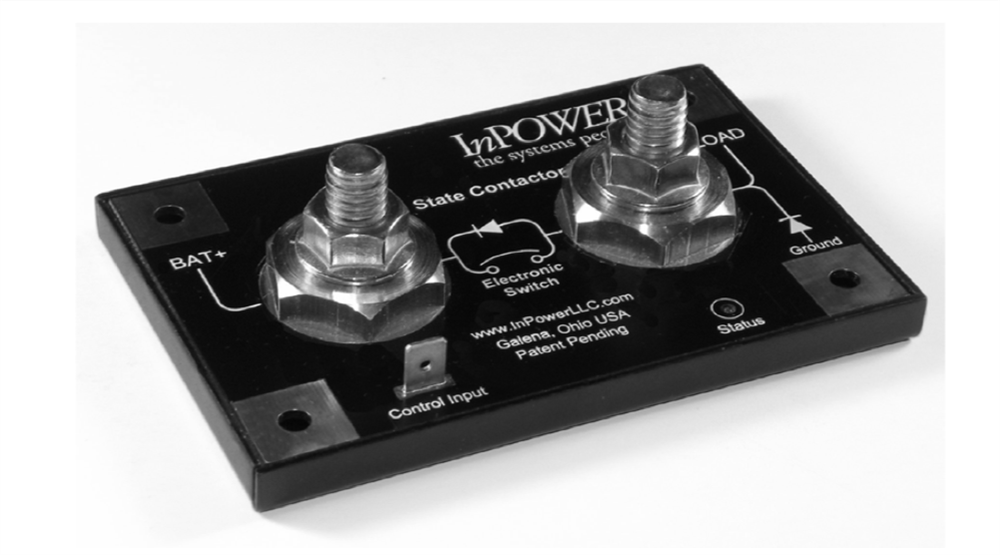

InPower Battery Disconnect Module - IP-SSC3-200A

The InPower Battery Disconnect Module (IP-SSC3-200A) is a third-generation, high-performance solid-state DC contactor engineered for demanding electrical applications. Designed to replace older models like the SSC20-200 and SSC21-200, this module utilizes advanced Cool Terminal Technology and LoadLogic software to efficiently manage high-inrush current demands from resistive, capacitive, and inductive loads. It is an essential component for emergency vehicles, work trucks, shuttle buses, and mobile equipment, providing reliable battery isolation and power management with no moving parts to wear out.

Technical Specifications

• SKU/MPN: IP-SSC3-200A (SSC3-200A)
• Maximum Current Rating: 200 Amps
• Operating Voltage: +7.0 to +18.0 VDC
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Construction: 100% Solid State with sealed, vibration-resistant design
• LoadLogic Technology: Automatically compensates for different load types and detects faults
• Fault Protection: Includes automatic shutdown for over-current, loss of ground, under/over-voltage, and over-temperature
• Status Indicator: Integrated LED shows switch state (ON/OFF) and flashes during fault conditions
• Dimensions: 4.0” W x 4.0” L x 1.2” H
• Origin: Proudly made in the USA
