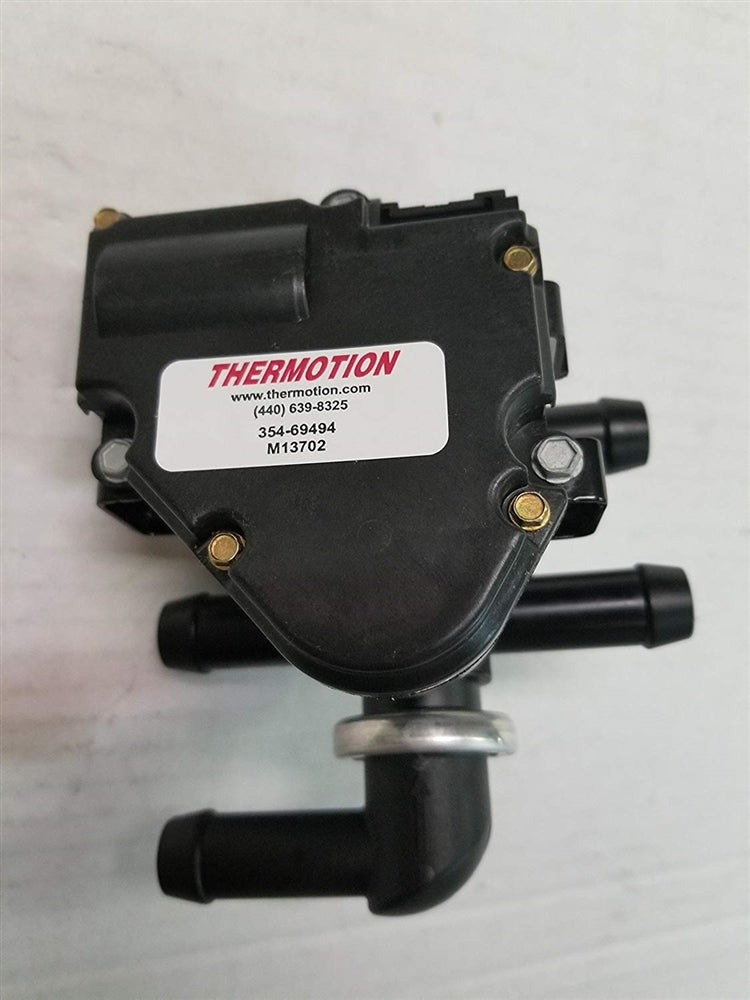

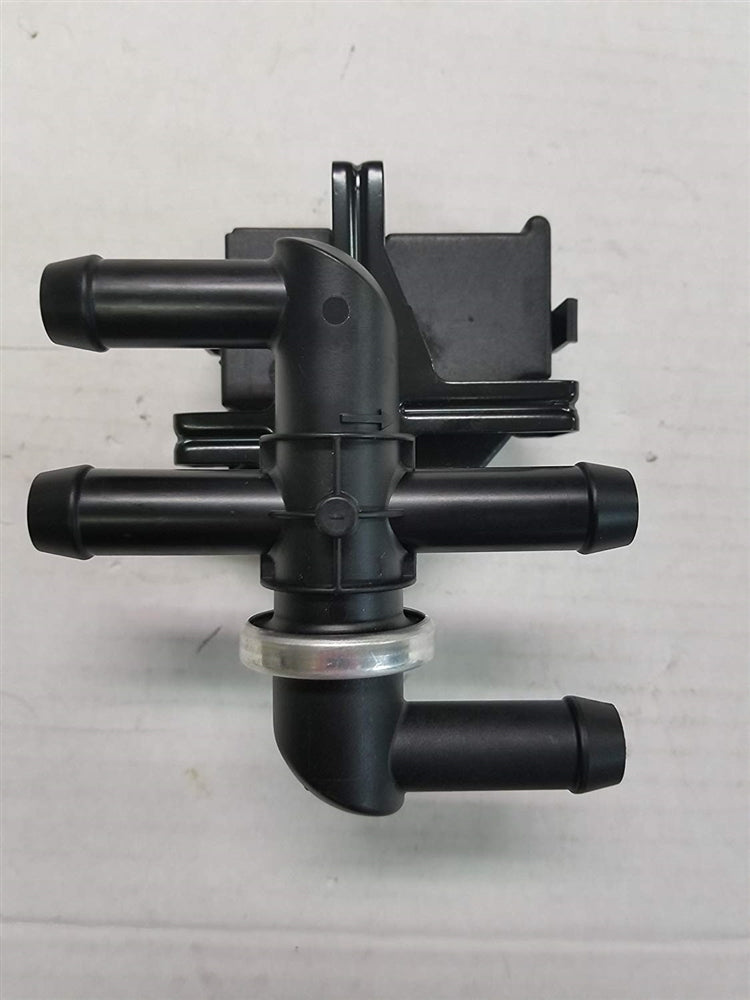

Thermotion Electronic Heater Control Valve, 5/8" - Thermotion-354-69494

The Thermotion 354-69494 Electronic Heater Control Valve is a high-performance 4-port bypass butterfly water valve designed for precise climate control in heavy-duty vehicles, ambulances, and commercial HVAC systems. This electronic coolant control valve modulates flow to the heater core via an electric actuator, allowing for compact, space-efficient HVAC designs that can reduce assembly footprints by up to 55%. It features an integrated position feedback potentiometer to ensure accurate temperature modulation and is compatible with both 12V and 24V electrical systems.

Features & Specifications

• Part Number: 354-69494
• Type: 4-Port Bypass Butterfly Water Valve
• Hose Connections: 5/8" (16mm)
• Operation: Electric Actuator (12 VDC or 24 VDC)
• Control: Integral position feedback potentiometer
• Flow Rate: 6 GPM (Approximate)
• Electrical: 5-pin connection; 9VDC to 30VDC operating range
• Compatibility: Replaces Red Dot RD-5-8135-0P, MEI 2410, and AirSource 2410
• Durability: Lightweight under-hood design with high-strength plastic body (20,000 PSI tensile strength)
