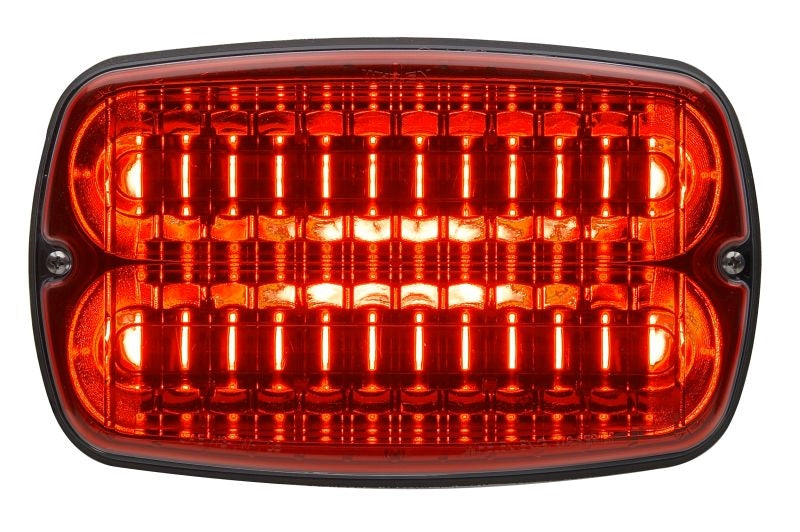

Whelen M9 Series LED, Red - W M9R

The Whelen M9 Series Linear Super-LED® lighthead is a high-performance, large-profile warning light engineered specifically for the demanding environments of fire trucks, ambulances, rescue vehicles, and commercial fleets. Utilizing patented Linear-LED® technology and a unique, fully illuminated reflector assembly, the M9 delivers unmatched intensity and wide-angle visibility, ensuring critical emergency identification in any condition.

Designed to withstand harsh industry elements, the lighthead features a hard-coated polycarbonate lens that resists scratches, chemicals, and road salt. The sealed lens/reflector assembly prevents moisture and water infiltration, while the rear-mounted gasket protects the vehicle's paint. With low current consumption and multiple Scan-Lock™ flash patterns, the M9 provides reliable, energy-efficient performance that meets KKK-1822F, NFPA 1901, and SAE standards.

Technical Specifications

• SKU/MPN: W M9R
• Series: M9 Series Linear Super-LED®
• Color: Red LED with Red Lens
• Mounting: Surface mount (via two screws)
• Dimensions: 10-3/8" L x 6-1/2" H x 1-3/8" D (protrusion)
• Current Draw: 3 amps peak / 1.2 amps average (@ 12.8 VDC)
• Flash Patterns: 159+ Scan-Lock™ flash patterns
• Certifications: SAE Class 1, KKK 1822F, NFPA 1901, California Title XIII compliant
• Warranty: 5-Year Whelen HDP Warranty
