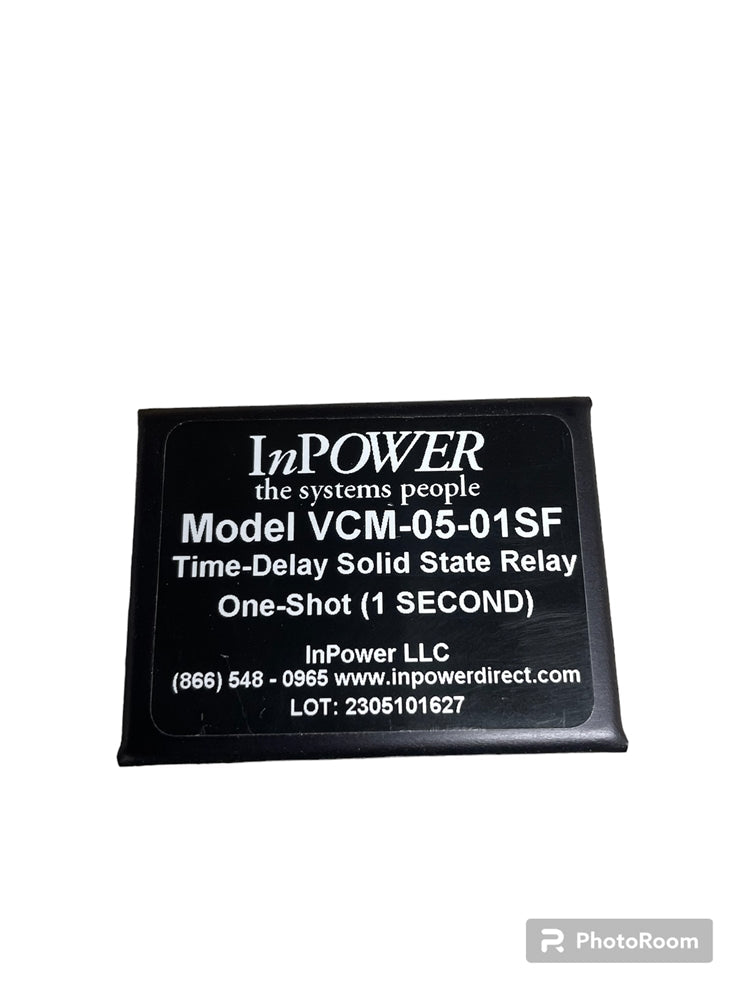

InPower One-shot Timer, 1 second - IP-VCM-05-01SF

The InPower IP-VCM-05-01SF is a high-performance, solid-state one-shot timer relay engineered for demanding electrical control systems in emergency vehicles, work trucks, and specialty transport. Designed for durability and precision, this 12V, 15A module provides a reliable 1-second fixed time delay, making it an essential component for automating sequences, indicator lights, and buzzer systems.

Featuring a rugged metal case and compact design, the VCM-05 series utilizes a standard automotive relay pin layout, ensuring straightforward integration into existing electrical panels. Its advanced microprocessor-based architecture includes over-current and short-circuit protection, offering superior reliability compared to traditional electromechanical relays.

Features & Specs

• Part Number: IP-VCM-05-01SF
• Function: One-Shot Timer Relay (Fixed 1-Second Delay)
• Output Rating: +12V @ 15 Amps
• Inputs: Dual inputs (Exclusive OR logic) - 12V actuated and ground actuated
• Protection: Over-current and short-circuit shutdown fault protection
• Operating Voltage: 8Vdc to 16Vdc
• Temperature Range: -40°C to +85°C (-40°F to 185°F)
• Construction: 100% Solid-state, durable metal case

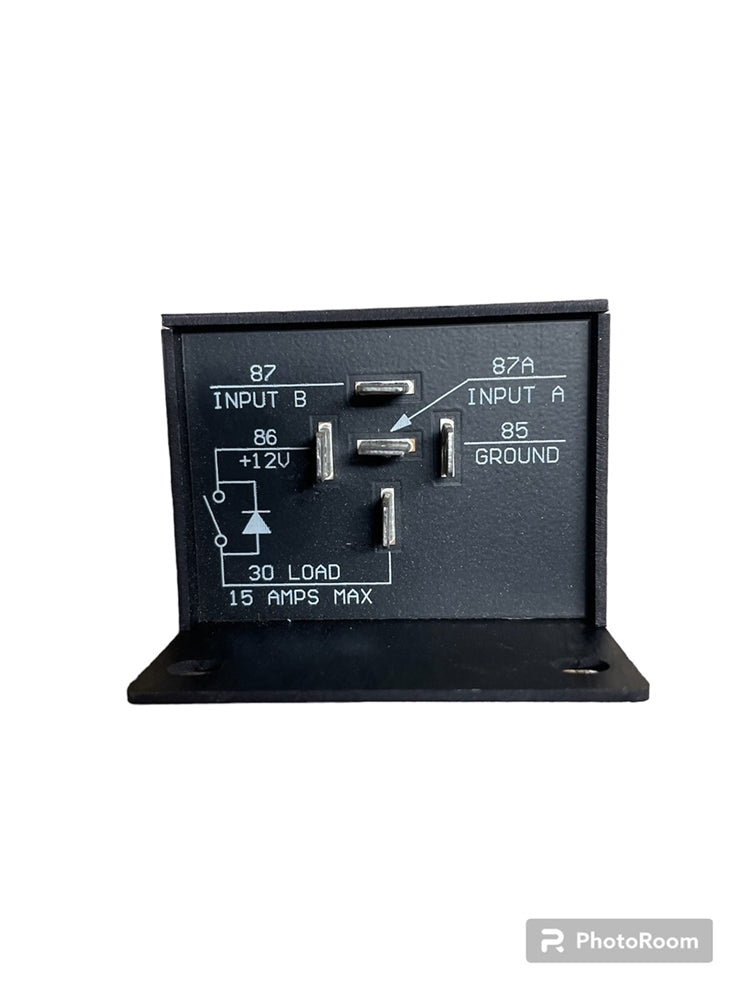

• Form Factor: Standard automotive relay pin format with mounting bracket
